CMD19 TC

Guarda il video

Engines far GA including Light Sport (LSA)/MOSAIC. Tactical UAVs

APPLICATIONS

GA including Light Sport (LSA)/MOSAIC
Tactical UAV

ADDED VALUES

Lower Stress at same power condition
Less Strain components
Reduced engine wear
High technology
Lower maintenance costs
High Performances

PRESTAZIONI

Architecture

4-cylinder boxer

Bore

Stroke

Displacement

cm³

1795,1

Compression ratio

8:25:1

Gear RR

2.667:1

lnduction type

Turbo charged

Fuel lnjection System

lndirect electronic injection system

Fuel

Gasoline EN228 - RON 95

Min. BSFC

g/kWh

280

Fuel Consumption

l/h

EECS

FADEC (SINGLE LINE)

Alternator

1 x 14V 30A (Main) + 1 x 14V 20A (Cockpit)

Cooling System

Liquid-cooled

Dry weight

96 with Gearbox

Weight to fly

Dry weight + 5kg of Liquids

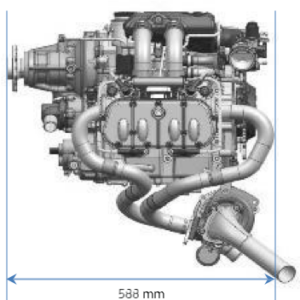

Dimension (LxWxH)

588 x 617 x 665 mm with Gearbox

Take-Off power

kW/Hp

132/180 kW/Hp @ 5800 rpm

Maximum Continuous power

kW/Hp

110/150 kW/Hp @ 5500 rpm

Max Altitude

12,000 ft
