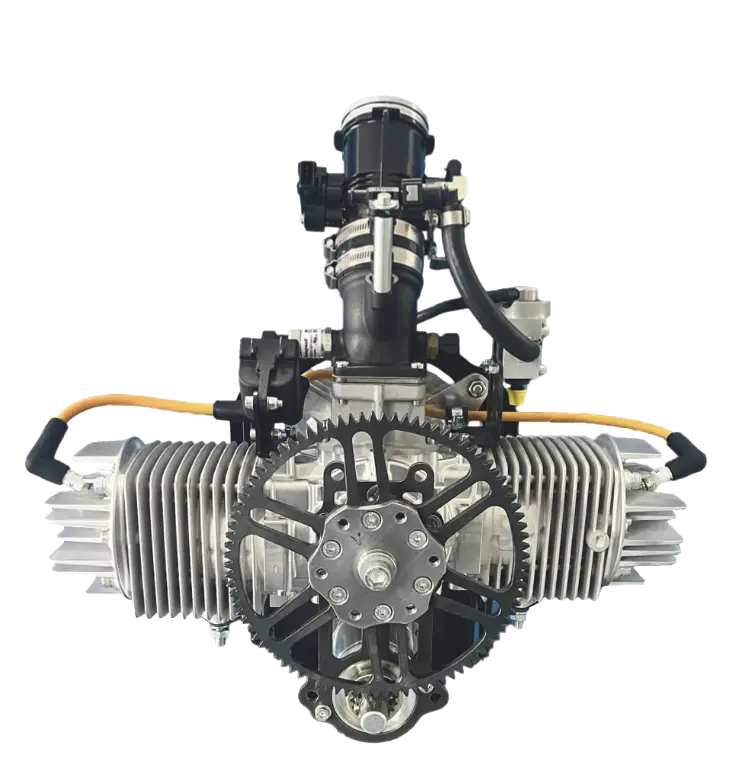

GN35Evo

Guarda il video

Engine for Tactical UAV, target drones and single mission platforms

APPLICATION

Tactital UAV
Target Drones
Single Mission Platforms

ADDED VALUES

High technology at competitive price
Lower maintenance costs
High performance

KEY FEATURES

* Engine accessories such as the following can be quickly engineered based on specific customer requirements:

Starter motor
Generator (up to 1kW @28VDC)
Mufflers (for silenced repowering)

Performance

Architecture

2-cylinder boxer

Bore

Stroke

Displacement

cm³

386

Compression ratio

10,5:1

Gear RR

1:1

Rotation:

Front view of the propeller, counterclockwise rotation

Induction type

Naturally aspirated

Fuel Injection Sys.

EFI - Electronic Fuel Injection

Fuel

Gasoline/Oil Mixture ratio 33:1

(Gasoline EN228 - RON 95

Oil API TC – JASO FD 100% synthetic)

Min. BSFC

g/kWh

~ 524

Cruise fuel consumption [cruise @ sea level]

l/h

< 14,7

EECS

SINGLE FADEC ECU

Alternator – Optional To Be Quoted

1 x 28 V (1kW)

Cooling System

Air-cooled

Starter system

2,56

Dry weight

17.3 without accessories*

Weight to fly

17.3 without accessories*

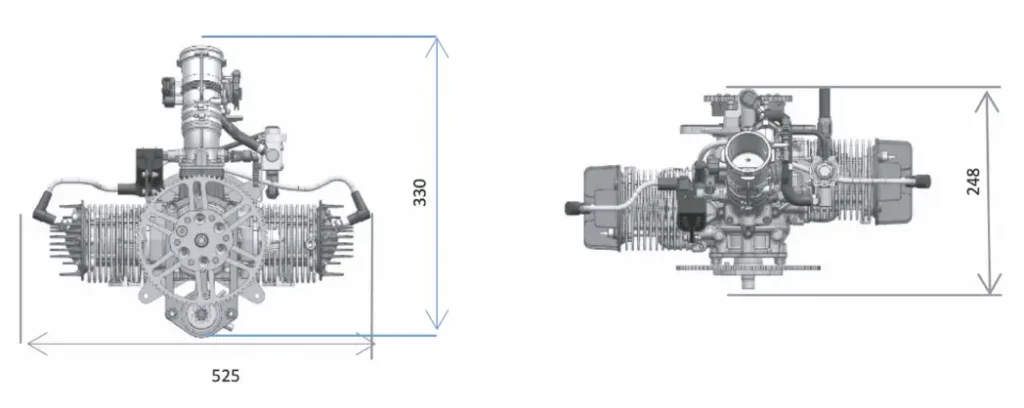

Dimension_ (LxWxH)

248 x 525 x 350

Take-Off power

kW/Hp

20.9 / 28.4 @ 7250 rpm

Maximum Continuous power

kW/Hp

18.16 / 24.7 @ 6870 rpm

Max Altitude

N.A.
