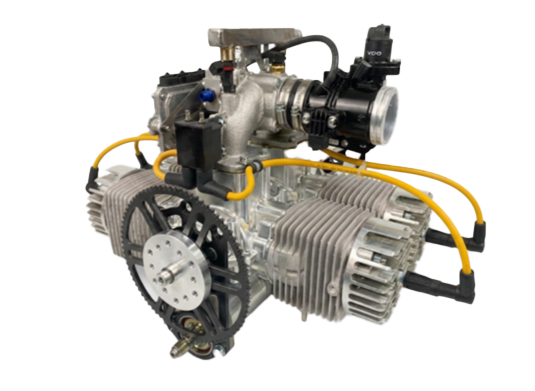

GN70Evo

Engine for Tactical UAV, target drones and single mission platforms

APPLICATION

Tactital UAV
Target Drones
Single Mission Platforms

ADDED VALUES

The technical configuration features four 198cc cylinders,
for a total displacement of 772cc, optimal for aircraft applications in the 60-70 hp range.

KEY FEATURES

* Engine accessories such as the following can be quickly engineered based on specific customer requirements:

Starter motor
Generator (up to 1kW @28VDC)

Mufflers (for silenced repowering)

Performance

Architecture

4-cylinder boxer

Bore

Stroke

Displacement

cm³

772

Compression ratio

10,5:1

Gear RR

1:1

Rotation:

Clockwise/Counterclockwise

Induction type

Naturally aspirated

Fuel Injection Sys.

EFI - Electronic Fuel Injection

Fuel

Gasoline/Oil Mixture(Gasoline EN228 - RON 95; Gasoline/Oil Ratio 30:1)

Min. BSFC

g/kWh

~ 450

Cruise fuel consumption [cruise @ sea level]

l/h

23,5

EECS

SINGLE FADEC ECU

Alternator – Optional To Be Quoted

1 x 24 V (1kW)

Cooling System

Air-cooled

Starter system

Included

Dry weight

22 without accessories*

Weight to fly

22 without accessories*

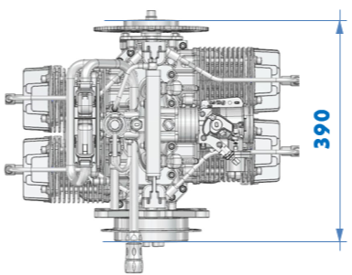

Dimension_ (LxWxH)

390 x 525 x 412

Take-Off power

kW/Hp

44 / 60 @ 6000 rpm

Maximum Continuous power

kW/Hp

37,7 / 51,2 @ 5670 rpm

Max Altitude

N.A.
